EBA 200 & 200S

The EBA 200, Hettich’s new, high-performance clinical centrifuge, offers simplicity and safety within a compact, elegant frame.
For convenient operation, the EBA 200 features a built-in, high-performance, 8-place, fixed-angle rotor and a bright, updated LCD display. The EBA 200 is ideal for small-batch clinical chemistry applications. The higher performance version of the centrifuge, the EBA 200 S, is STAT capable and achieves PPP in minutes.

Main features:

  • Compact & powerful clinical tabletop centrifuge for standard blood, urine and pediatric tubes
  • Quiet Operation
  • Easy-Lift™
  • Safety-Lock™ Lid
  • Two (2) year warranty
  • FDA registered centrifuge manufacturer

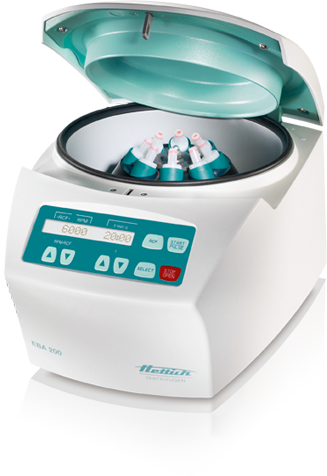

Hettich EBA 200 centrifuge closeup

The EBA 200, Hettich’s new, high-performance clinical centrifuge, offers simplicity and safety within a compact, elegant frame.

For convenient operation, the EBA 200 features a built-in, high-performance, 8-place, fixed-angle rotor and a bright, updated LCD display. The EBA 200 is ideal for small-batch clinical chemistry applications. The higher performance version of the centrifuge, the EBA 200 S, is STAT capable and achieves PPP in minutes.

Advanced safety features of the EBA 200 include its all-metal containment and the Hettich Safety-Lock™ lid, which ensures a safe, tight closure on the centrifuge chamber during operation.

Additionally, the EBA 200 employs the Hettich Easy-Lift™ lid limits repetitive stress injuries, spillage, and accidental sample disruption when loading and unloading your centrifuge.

Hettich centrifuges adhere to all national and international safety standards and certifications and, as always, are backed by Hettich’s five-year warranty.

Hettich EBA 200

Popular configurations

TUBE QTY VOLUME (mL) SIZE (mm) RPM G-FORCE
8 1.6 – 5 13 x 75 6,000 2,697
8 4 – 7 13 x 100 6,000 3,461
8 8.5 – 10 16 x 100 6,000 3,461
4 8 16 x 125 6,000 3,461
PACKAGE CONTENTS

(1) EBA 200 Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 13 x 75 mm,
(8) Adapters 13 x 100 mm

TUBE QTY VOLUME (mL) SIZE (mm) RPM G-FORCE
8 1.6 – 5 13 x 75 8,000 4,794
8 4 – 7 13 x 100 8,000 6,153
8 8.5 – 10 16 x 100 8,000 6,153
8 8 16 x 125 8,000 6,153
PACKAGE CONTENTS

(1) EBA 200S Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 13 x 75 mm,
(8) Adapters 13 x 100 mm

TUBE QTY VOLUME (mL) SIZE (mm) RPM G-FORCE
8 0.5 10.7 x 36 6,000 2,214
PACKAGE CONTENTS

(1) EBA 200 Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 0.5 mL

TUBE QTY VOLUME (mL) SIZE (mm) RPM G-FORCE
4 12 (KOVA) 17 x 102 6,000 3,461
4 15 Conical 17 x 120 6,000 3,461
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in, Angle Rotor

Centrifuge EBA 200 EBA 200S
Dimensions 228 x 261 x 363 mm    228 x 261 x 363 mm
Weight: approx. 8kg approx. 10kg
Max Capacity 6 x 50 mL 6 x 50 mL
Max RPM 6,000 6,000
Max RCF 4,146 5,071
Refrigerated No No

Does this centrifuge conform to IVD directive 98/79/EC?

Yes. This centrifuge conforms to the In-vitro Diagnostics (IvD) EU directive. This means that the products are guaranteed a standardised level of quality and safety.

Does this centrifuge use a brushless motor?

All Hettich centrifuges are fitted with a powerful, carbon free (brushless) induction drive motor.

Does the manufacturer comply with ISO 13485?

Yes. Hettich complies with ISO 13485. This standard relates to the design and manufacture of medical devices.

Can you perform a UKAS calibration on this centrifuge?

We can perform a UKAS calibration for speed, temperature and time. For more details, please consult our schedule.

Does the centrifuge have out-of-balance detection?

Yes. All Hettich centrifuges have an out-of-balance detection system built into the centrifuge.

Do you also supply the tubes and bottles?

We have stock of some, but not all tubes. Please contact us with more details of your requirements.

What is the warranty period?

All Hettich centrifuges come with a 2-year warranty as standard.

But what if I want a longer warranty?

We can arrange a longer warranty for a small fee.

Are these products CE marked?

Yes. All Hettich centrifuges are CE marked.

Can you autoclave the rotor, buckets and adaptors?

Yes. All Hettich accessories can be autoclaved.

Are spare parts readily available?

We stock thousands of centrifuge spare parts in our London warehouse. However, if we do not have the part in stock, we can source it from the manufacturer. Hettich guarantees that all spare parts will still be available for purchase 7 years from the date production has ceased.

What is the typical lead time of this centrifuge?

We hold stock of centrifuges at our London warehouse. If the centrifuge is in stock at the time of ordering, then we can deliver it to you by the next working day. If the centrifuge is not in stock, we will have to order the instrument from the manufacturer. In this case, delivery time is normally between 2 and 4 weeks.

Where is this centrifuge manufactured?

All Hettich centrifuges are made in Germany.

What happens if there is a power failure, or a fault with the centrifuge and my samples get stuck inside?

All Hettich centrifuges have an emergency lid lock release, which can be activated in the event of a lid-lock failure. Please contact our technical team should this happen.

How do I dispose of the centrifuge when it comes to the end of its life?

We can collect your centrifuge and recycle it responsibly, ensuring that any harmful substances are recovered in the process. A charge is sometimes applicable for this service, depending on the make and model. Please contact us for more details.

Do you offer training on this centrifuge?

Yes. Henderson Biomedical can offer training. Please contact us for more details.
